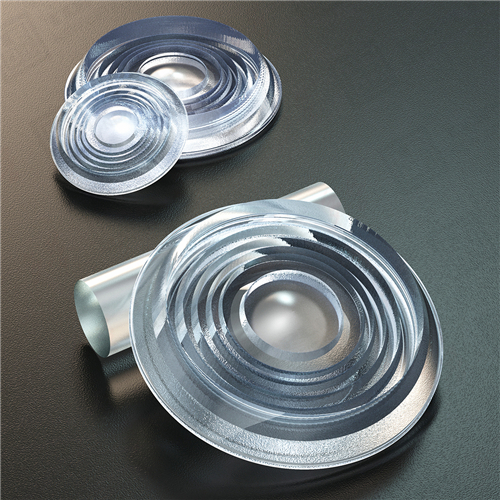

Fresnel lens

Kullen

Total internal reflection, folded light path;
Short focal length, high light utilization;
Compact design of the luminaire;
Technical invention patent;

Model No.	Size(mm)	LED(LES)	Power	Beam angle	Field angle	Material	Transmittance
KULLEN90	Φ90×22.4	Φ2.2mm	≤40W	2°	3°	PC	92%
KULLEN90	Φ90×22.4	Φ3.2mm	≤60W	4°	6°

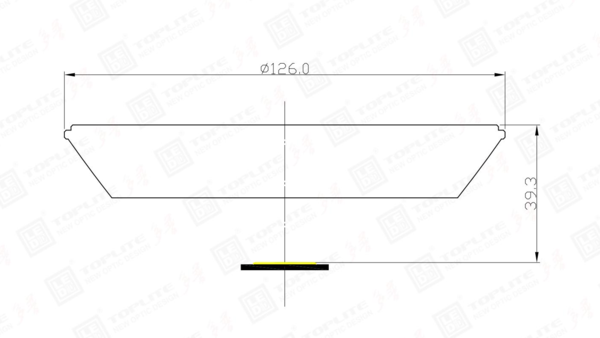

KULLEN126	Φ126×20.8	Φ2.2mm	≤60W	3.3°	5.3°
		Φ8.5mm	≤300W	8°	12.2°
		Φ26mm	≤500W	20.4°	29.6°

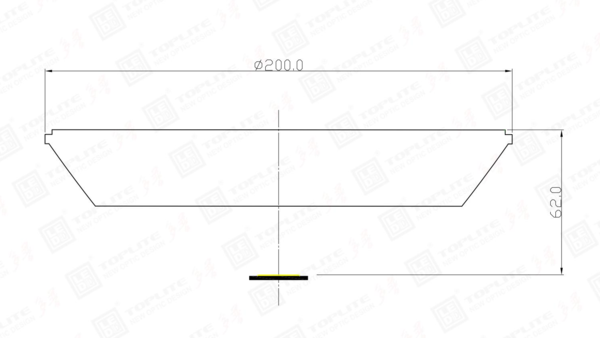

KULLEN200	Φ200×32.6	Φ2.2mm	≤60W	2.36°	4.7°
		Φ8.5mm	≤300W	5.6°	9.14°
		Φ26mm	≤500W	12.3°	20.4°
